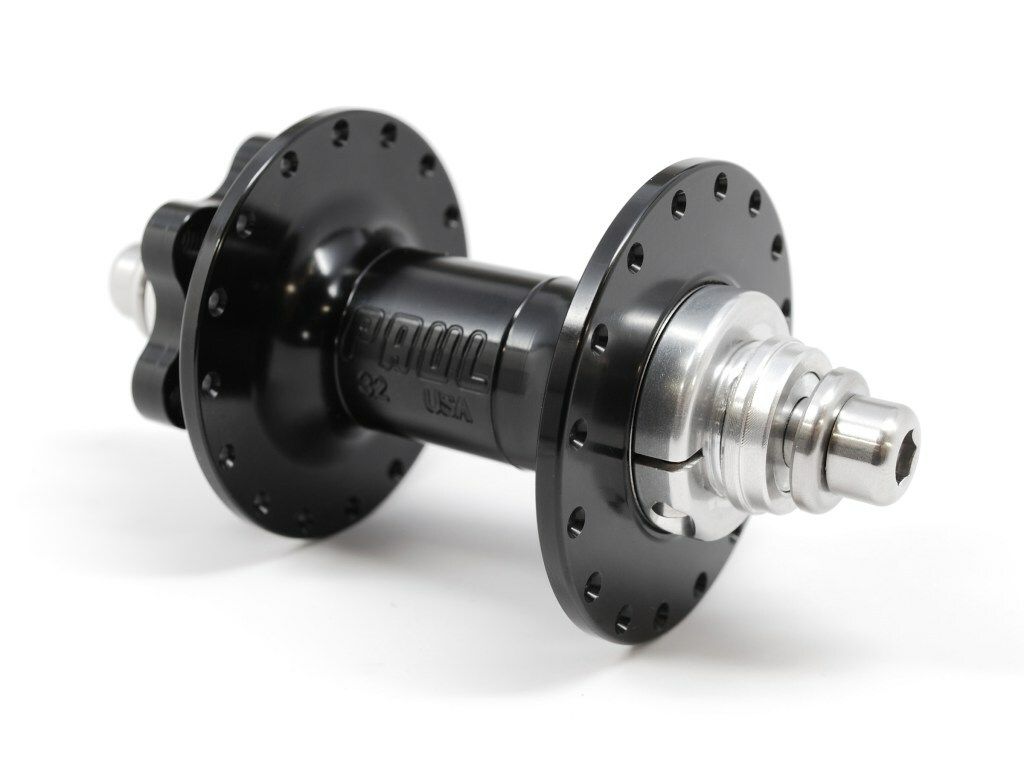

PAUL COMPONENTS Disk Fhub

DISK FHUB

Our Disc FHUB can be selected with one of three different super-stiff, super-light, flex-free interchangeable axle configurations: Quick-Release, Bolt-On, and Thru-Axle. Easily serviced and made right here in Chico, California, these hubs will last you a lifetime. Looking for purple? Shoot us an email: sales@paulcomp.com

TECHNICAL INFORMATION

• Material

  6061 Aluminum

• Weight

  15mm Thru-Axle Version: 174g
  12mm Thru-Axle Version: 172g
  Quick Release Version: 190g
  Bolt-On Version (Including Bolts): 223g

• Finish

  Anodized or Polished

• Anodized Color

  Black or Silver

• Dimensions

  Axle Spacing: 100mm
  Flange Diameter: 56m
  Center to Disk Flange: 21.5mm
  Center to Non-Disk Flange: 33.5mm

• Spoke Holes

  24, 28, or 32

• Spoke Hole Diameter

  2.5mm

• Axle Bolt Torque

  21NM

• Additional Information

  Download

• Exploded Assembly Drawing



PRODUCT STORY

Yes, this hub spins very smoothly due to extremely high tolerance machined bearing bores (.0002″, that’s 8 times thinner than the thickness of a human hair!) and high quality user-adjustable sealed cartridge bearings. The hub shell design has been refined over years of production and real world abuse to be as light as possible while still withstanding the abuse that the biggest, most reckless riders can put it through.

But the real star of the show might be the super-stiff, super-light, flex-free, interchangeable 7075 Alloy axle. Available in 3 configurations: Quick-Release, Bolt-On, and Thru-Axle, it passes from dropout to dropout (unlike the flexy, non-adjustable caps so common on cheaper hubs that love to pop off and roll under your car or workbench every time you take your wheel off). In the future, if you switch forks or get a new bike, you can easily change out the existing axle for whichever style of attachment fits your new fork.

Fresh bearings and axle conversion kits are available for hub overhauls and rebuilds in the Hub Service Parts section.

Made with pride in Chico, California.
